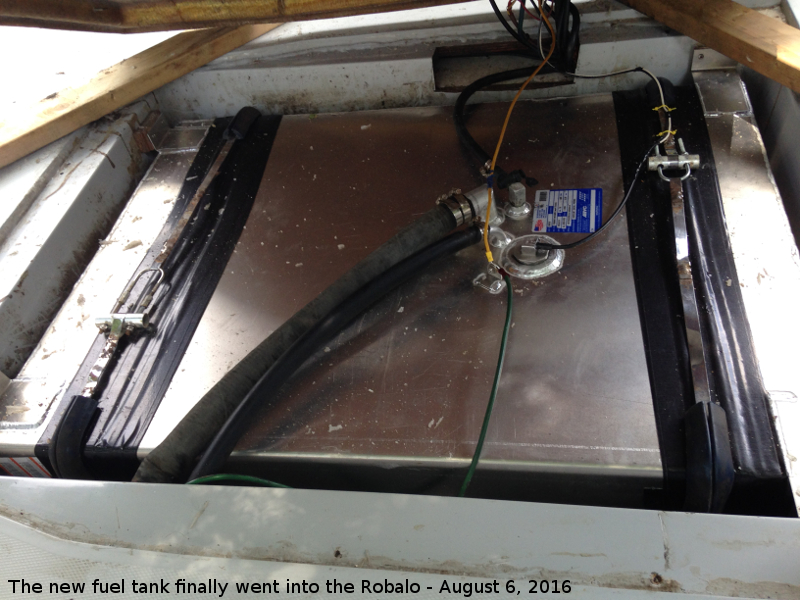

We finally installed the new gas tank. While were were under the center console we found some new problems that need to be fixed.
I couldn't figure out the old number scheme so I created my own.
These are the power busses on the Robalo as of 7/23/2017. Note: The wires at P1-2A and P1-3A were removed after this picture was taken because neither end was connected to anything.
P1-4A is still connected because the other end is connected to the navigation light swtich, but it is not used.
